Datos del producto:
Pago y Envío Términos:
|
| Tamaño: | 3 3/4" (95.3m m) ~26" (660.4m m) | Tipo bien: | Chasis bien |
|---|---|---|---|
| presión: | 2000-20000 PSI | Color: | Rojo, blanco |
| Grado de acero: | 42 CrMo | Servicio: | Precio bajo, buena calidad y entrega rápida |
| Alta luz: | 5000PSI Wellhead Casing Hanger,26" Wellhead Casing Hanger,Anti H2S Drill Casing Hanger |
||

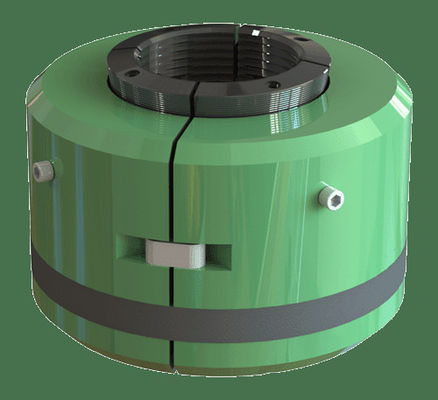

Casing Hanger 5000PSI for Oilfield Wellhead and Christmas Tree Connection
Product Descrption
The casing hanger is placed in the cone seat of the lowest part of casing head or intermediate casing head to hang the following smaller casing string and make a seal for the hanging casing and casing head cone seat. It should be able to withstand the weight of the casing hanging. Therefore, the tensile load, the weight load from the pressure in the well casing, and radial load of the conical shoulder are the main loads of the hanger.

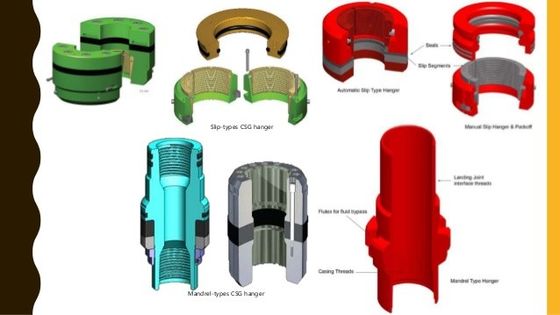

Slip casing hanger is made of low alloy steel with high bearing capability and anti-H2S and access to on-site welding. The types of connecting with casing include welding, threading, slipping and BT sealing. It is mainly used to fix the drilling Wellhead, connect down hole casing string, seal and control annular pressure. Either API 6B or API 6BX flange is used on the top of the casing head. Its side outlet can be customized to line pipe thread or section threaded.
Design Features of Our Wellhead Casing Hanger
Technical Parameters of TR Wellhead Casing Hanger
| Rated operating pressure psi(MPa) |
Nominal bore diameter in(mm) |
Bypass bore diameter in(mm) |
Outer diameter of the casing for the hangerin(mm) |
| 2000(13.8) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 3000(20.7) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 5000(34.5) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 10000(69.0) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 15000(103.5) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 20000(138.0) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
Xi'an TianRui Petroleum Machinery Equipment Company Limited engages in oil drilling engineering and technical services; technology development and application of automatic control equipment; overhaul and maintenance of oil and gas well testing; sales of oil drilling equipment and accessories, drilling tools, drill pipe and tubing, instrumentation and accessories, electromechanical equipment. We have been committed to being the world's leading suppliers and technical service providers in petroleum equipment industry.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
