Datos del producto:
Pago y Envío Términos:
|
| Tamaño: | 9" - 21 1/4" | presión: | 5000 PSI |
|---|---|---|---|
| Color: | Rojo, blanco | Embalaje: | Caja de madera |
| Temperatura de trabajo: | -60℃~390℃ (- 75℉-734℉) | Medio: | Aceite, agua, gas, fango |
| Resaltar: | 5000 Psi Wellhead Casing Hanger,API 6A Wellhead Casing Hanger,PSL 1 Wellhead Casing Spool |
||

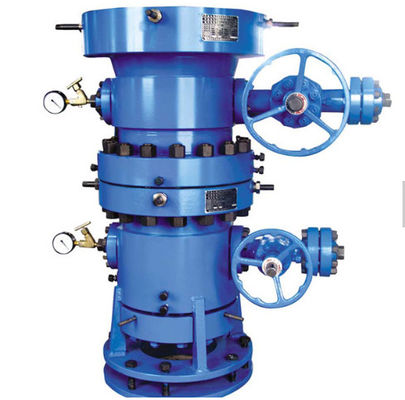

API-6A Wellhead Equipment Casing Ppool Casing Hanger Casing Head
Product Descrption

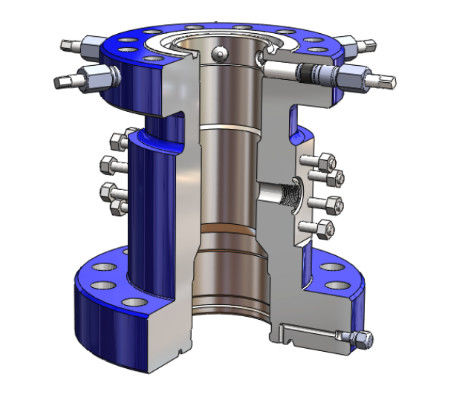

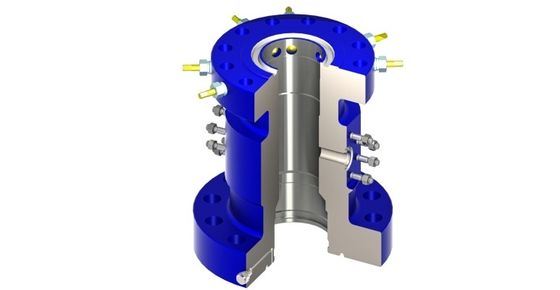

Casing head is a component connecting the casing and various wellhead devices. To support the gravity of the technical casing and reservoir casing, to seal the annular space between each casing, to provide a transition connection for the installation of upper wellhead devices such as bop, tubing head and tree, and through the two side openings in the casing head body, to perform the cementing, monitoring well sinking, and injection balancing operations.
We manufacture standard structural casing head with casing hanger installed in the body. Casing hanger can be chosen as per different casing program and well condictions.top flange of casing head can be API 6B or 6BX.
Bottom connection can be CSG,BTC,SOW or slip-lock. We can also provide landing plate as per request.side outlets can be threaded or studded.
Product Application
Manufacturing Equipment
Technical Specifications of TR Wellhead Casing Head
| Casing Program | 20"×133/8" ×95/8" ×7" or 51/2" |
| Flanged Outlet | PFF35/80:R35 |
| PFF70/65:BX153 | |
| Load Capacity | Mixmum 5000KN |
| Hanger Specification | 4",41/2",5",51/2",7" |
| Working Pressure | 35MPa~70MPa |
| Performance Requirement Grade | PR1 |
| Product Specification Grade | PSL1-3 |
| Temperature | P·U(-29℃~121℃) |
| Material Class | AA~FF |
Xi'An TianRui Petroleum Machinery Equipment Company was founded in 2010, Xi'an city of China. Oil machinery is our main products, the leading products include solid control equipment, pumping unit, subsurface sucker rod pump, wellhead (Christmas Tree), pressure vessels, drilling downhole products and cementing accessories.
Our Service
1. For all your inquiries about our products, we will reply you in detail within 24 hours.
2. We have engineers who have more than 10 years’ experience to help you solve all the problems of technical.
3. We have a good translation, enthusiastic sales and service who can speak fluently in English and Russsain.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
